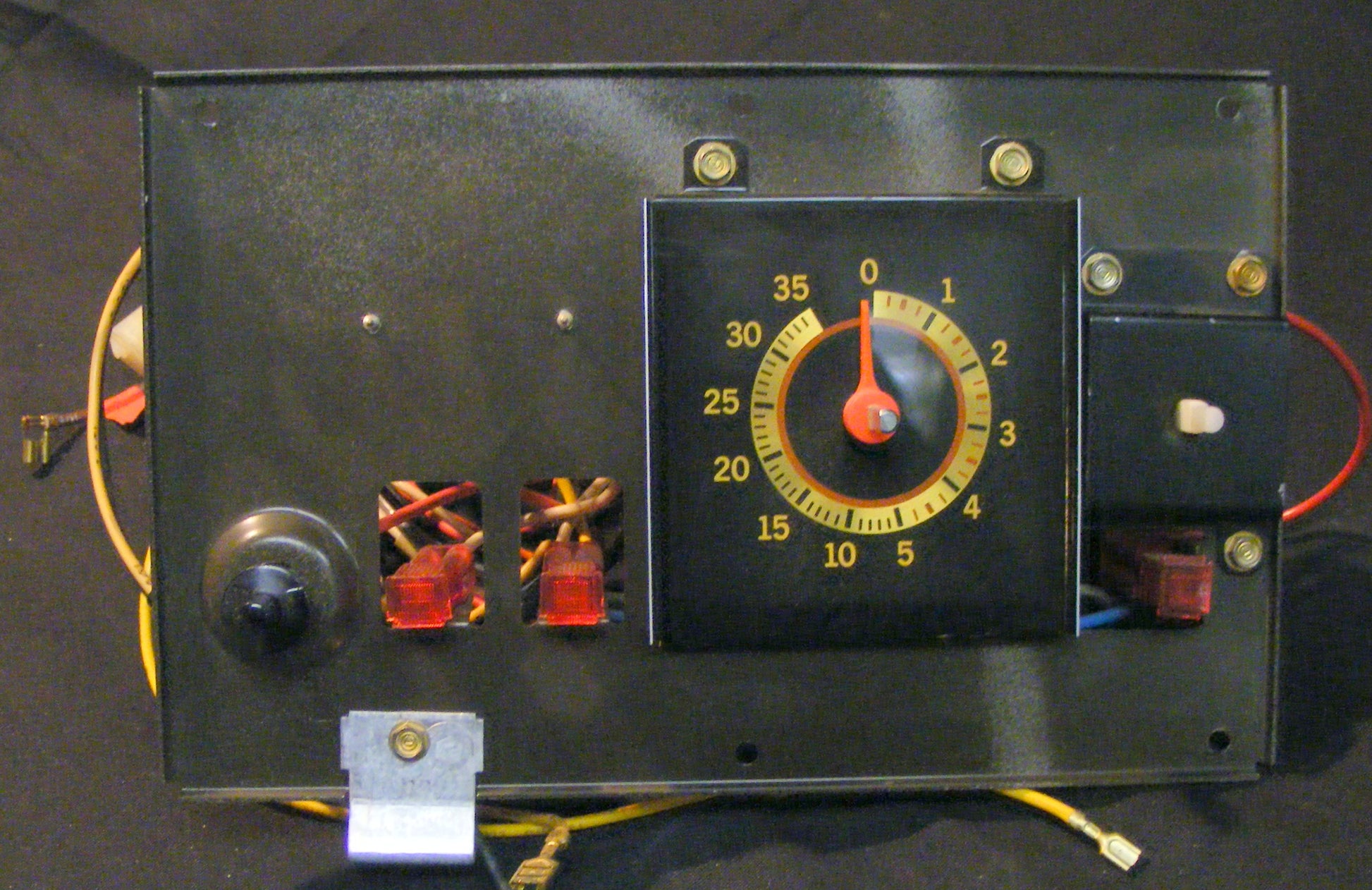

WB19X5255 WB02X6883 GE Range Vintage Microwave Timer

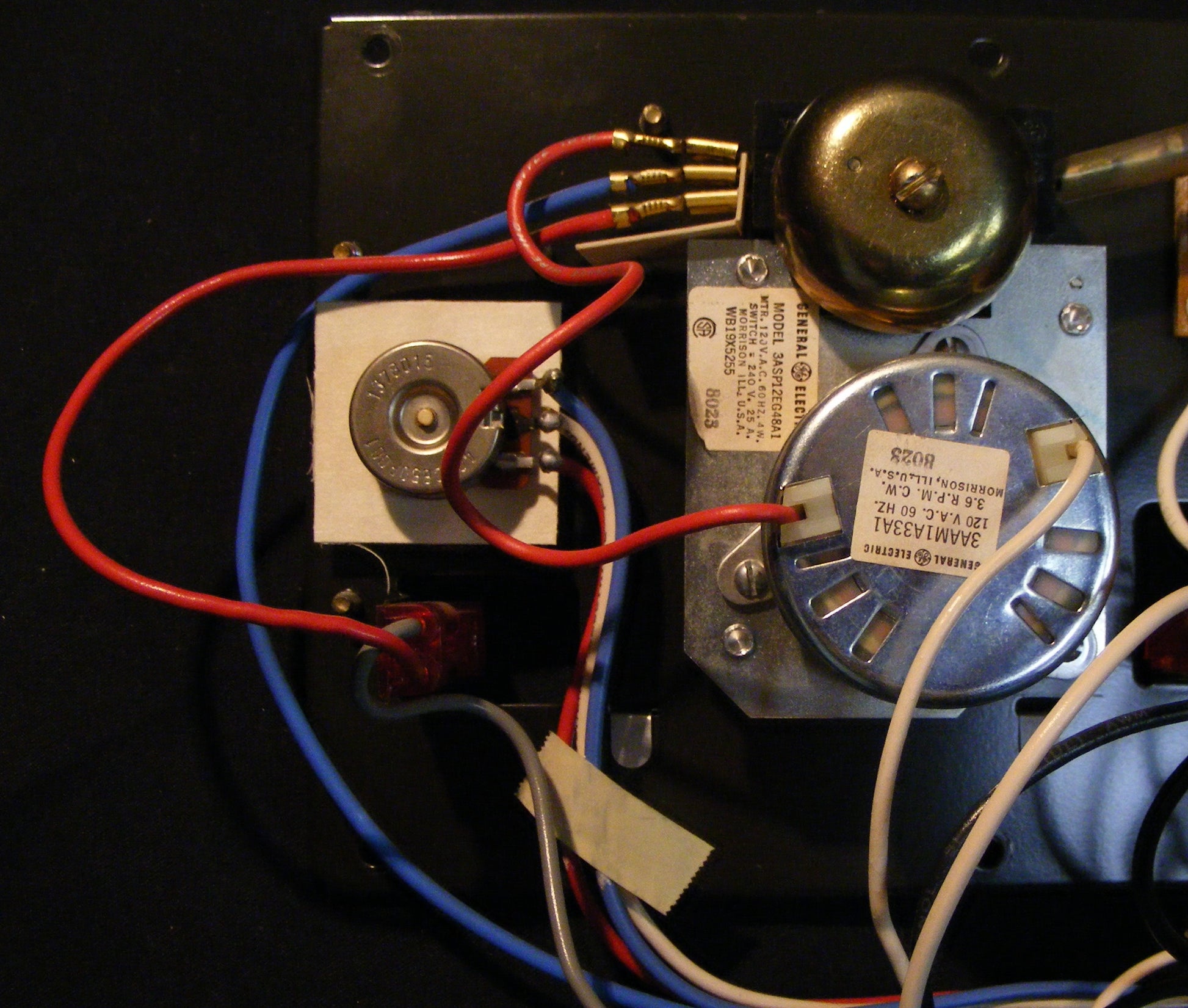

Timer Motor, 3AAM1A33A1, 3.6 R.P.M. , C.W. , 4 W, 60HZ .

Timer, 3ASP12EG48A1, WB19X5255, 240 V.A.C. , 60 HZ. , 25 A .

Potentiometer Lead Assembly, 406C650P001, WB24X5147, 1378015 .

Resistor Board, WB02X6883 .

110V Neon Lamp, WB2X1608 .

Latch Release Switch, WB24X0218 .

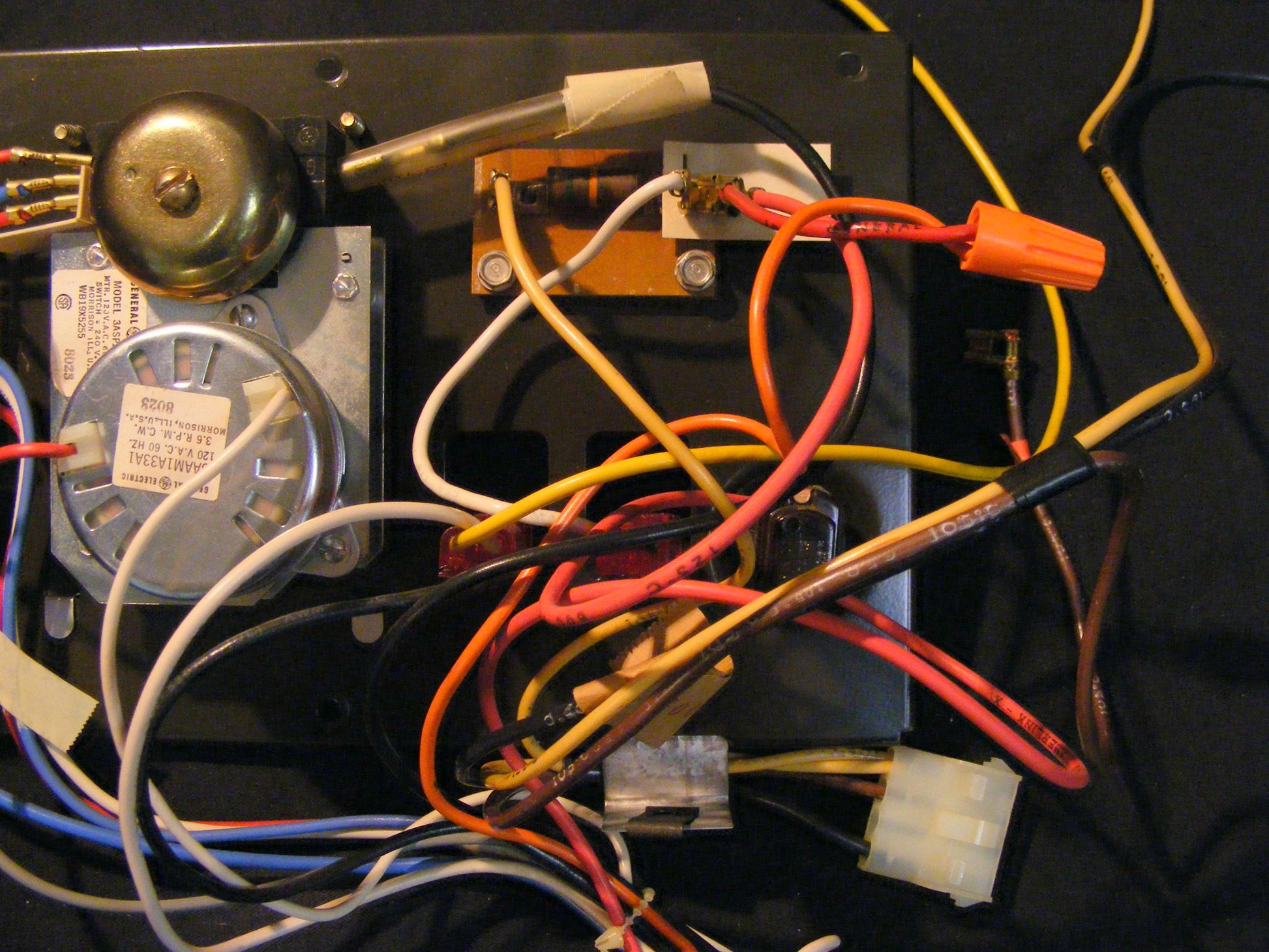

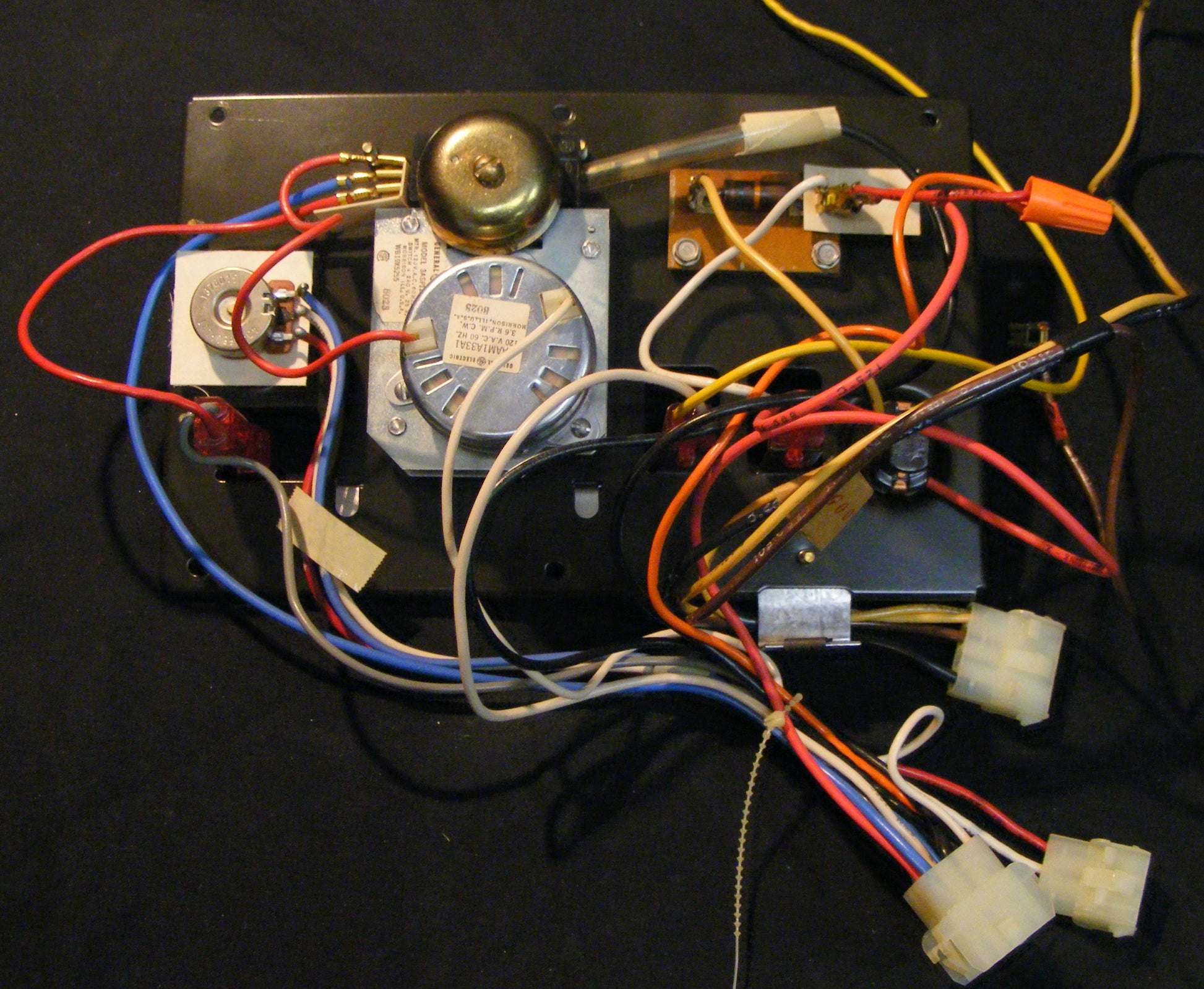

Includes the wiring harness as pictured,  371D182G003 R1 .

Used part fits model JBV42GX01, plus many other similar makes and models .  Fits many GE and Hotpoint ranges .

Please verify this part will fit your model appliance by emailing us at goodapplianceparts@gmail.com.  The actual part is pictured. Without verification the part cannot be shipped, returned or refunded .

Measurements:  Mounting Plate -  9" W  x  5 3/4" H (approx.) .

90 Day Warranty .

Stock Number:  S2022  .

The parts are in good condition, some may have scratches and marks from previous use .

Refer to the product images, dimensions, and part numbers to confirm if this part is compatible with your specific model. If you do not have a part number, you can visit either searspartsdirect.com or appliancepartspros.com to check for compatibility. You may also contact us at 260-563-0147 for assistance .
