OEM KitchenAid Range Wiring Harness Assembly KERS303BSS0 – Used – 90-Day Warranty

Restore your electric range with this genuine OEM KitchenAid range wiring harness assembly. This complete used OEM wiring assembly includes multiple factory-installed harnesses and electrical components removed from a working appliance. Each component has been carefully inspected and is ready for installation.

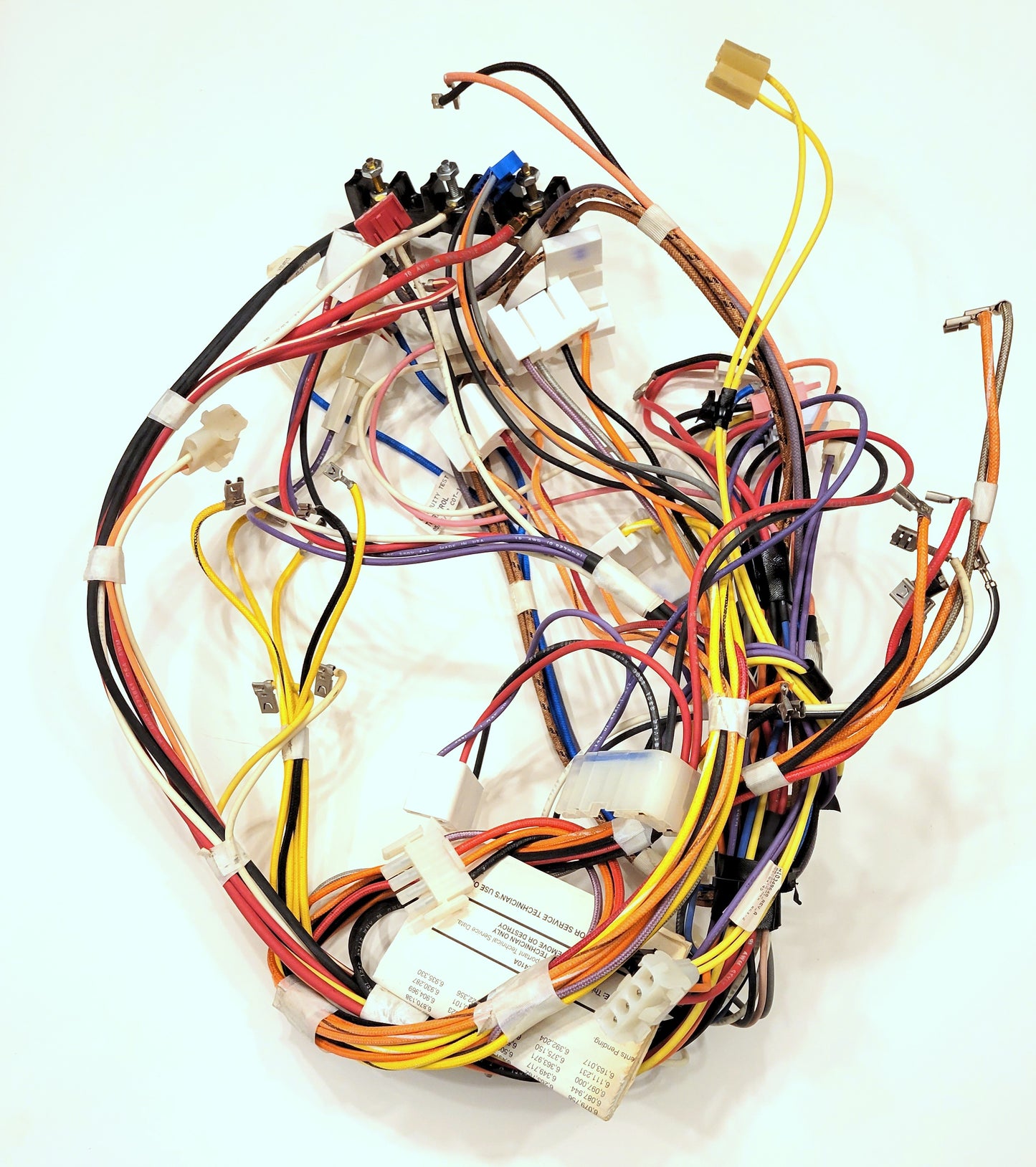

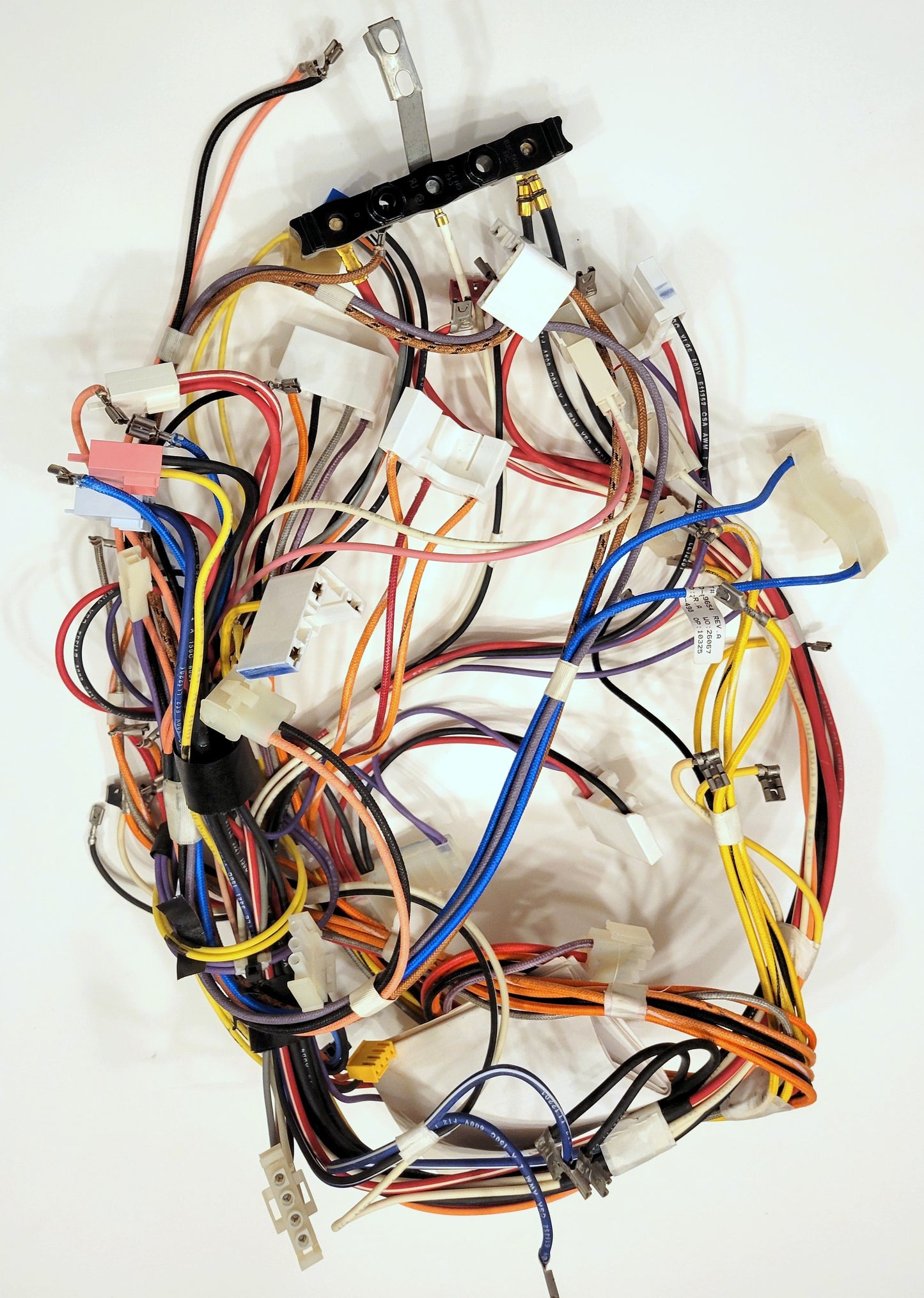

The listing photos show the actual parts you will receive.

Included OEM Components

Main Wiring Harness

Part Number: W10349734

Replaces: AP5807336, W10349676, PS9493164.

Secondary Wiring Harness

Part Number: W10349717

Replaces: AP5617435, AH3651075, EA3651075, PS3651075.

Additional Wiring Harness

Part Number: W11134550

Replaces: AP6333454, W10744210, W10349654, PS12578055.

Additional Wiring Harness

Part Number: W11212183

Replaces: AP6333499, W10349640, PS12578300.

Indicator Light Set

Part Number: WP8523265

Replaces: AP6012837, 8523265, 939920, PS11746053, W10432504.

Terminal Block

Part Number: WPW10245259

Replaces: AP6017673, W10245259, 0306379, 0B00200399, 14253508, 14265221, 14277260, 1706464, 1867-255, 1867255, 4364187, 5-50044, 5-50834, 550044, 550834, 7-90272, 7401P002-60, 7401P028-60, 7401P038-60, 7401P039-60, 790272, 8189776, 880002, PS11750972, R0167038, Y0306379, Y0B00200399.

Oven Temperature Sensor

Part Number: WPW10181986

Replaces: AP6016450, W10181986, 1394200, 8273902, PS11749737, W10131826, WPW10181986VP.

Wiring Diagram

Part Number: W10522410A

Removed From Model

• KERS303BSS0

Compatible Models Include (But Are Not Limited To)

• KERS303BSS0

May also fit many additional KitchenAid, Whirlpool, Jenn-Air, Maytag, Amana, and Kenmore electric range models using the listed part numbers.

Measurements

Approximate measurements available upon request.

Compatibility

Please verify compatibility with your appliance model number before ordering.

For assistance:

• Email: goodapplianceparts@gmail.com
• Text: 260-228-2996
• Call: 260-563-0147

We are happy to help confirm fitment and identify the correct replacement part.

Important: Orders cannot be shipped until compatibility has been verified. Parts ordered without verification are not eligible for return or refund if they do not fit.

Condition

• Genuine OEM used parts
• Complete wiring harness assembly with electrical components
• Carefully inspected and tested
• Good used condition
• May show normal cosmetic wear including scratches, scuffs, stains, discoloration, and surface marks from previous use
• Please review all photos carefully, as the item pictured is the exact assembly you will receive

Warranty: 90-Day Warranty

Stock Number: S4514
