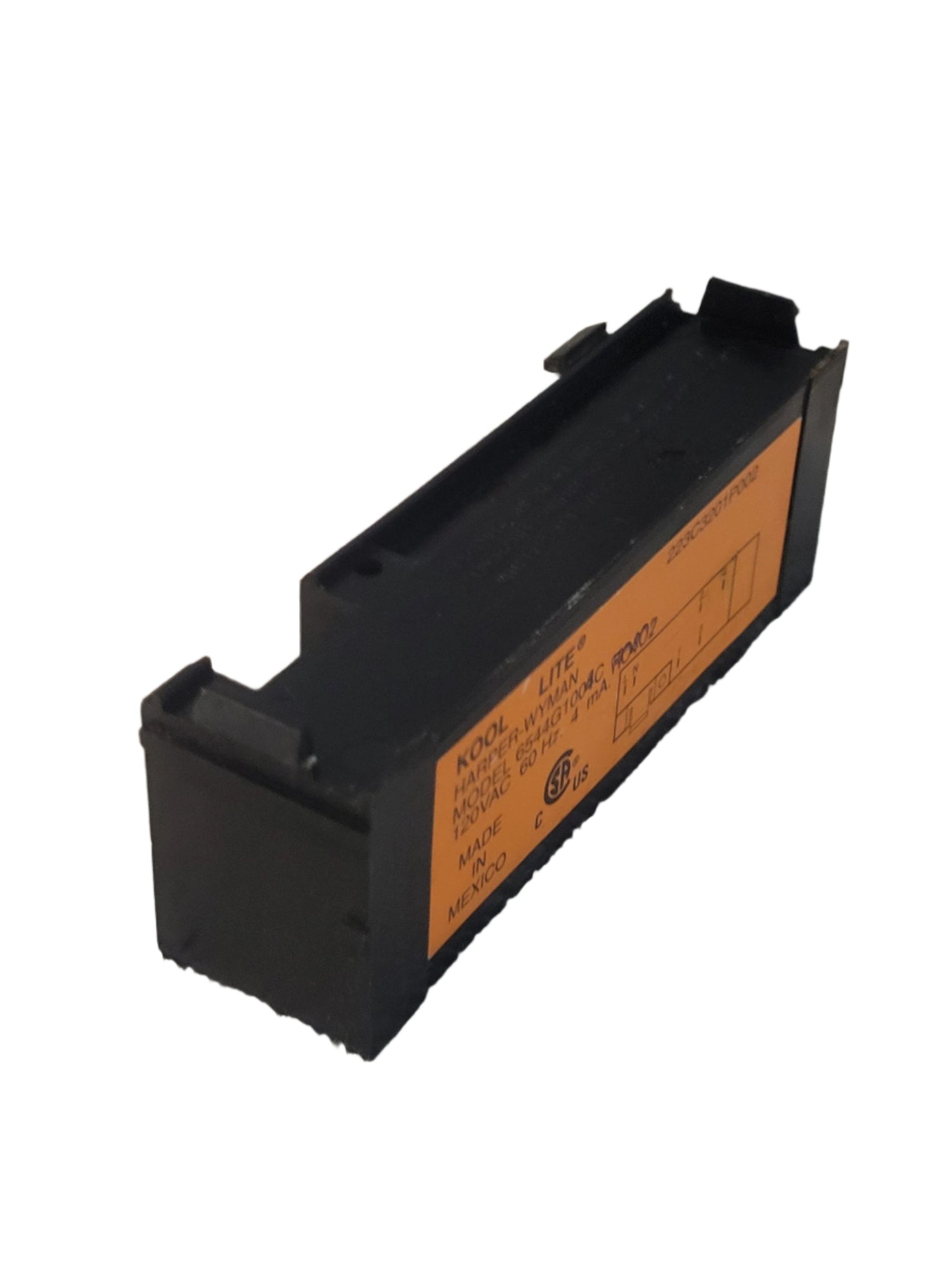

WB13k25 GE Range Used Spark Module

Used Spark module WB13K25, AP2020570, 223C3201P001, 223C3201P002, 244920, 6544G10, AH231281, EA231281, PS231281, WB13K0025, Y0314416, 000511-000, PA020016, 223C3201P002, 544G1001C, Harper Wyman, are known part numbers.

Compatible models: Fits many models of GE, Hotpoint, and Kenmore ranges.  RGB740BEH3WH, 36272181890 , 36272181891 , 36272188890 , 36272188891 , 36272191890 , 36272191891 Gas , 36272191892 , 36272198890 , 36272198891 , 36272198892, Hotpoint,  GE , J2B915WEH3WW , JGB900BEF1BB , JGB900BEF2BB , JGB900BEF3BB , JGB900BEK1BB , JGB900CEF1CC , JGB900CEF2CC , JGB900CEF3CC , JGB900CEK1CC , JGB900SEF1SS , JGB900SEF2SS , JGB900SEF3SS , JRGB527EV1AD , RGB527EV1WH , RGB530BEA1AD , RGB530BEA1WH , RGB530BEA2AD , RGB530BEA2WH , RGB530BEA3AD , RGB530BEA3WH , RGB530BEW1AD , RGB530BEW1WH , RGB530BEW2AD , RGB530BEW2WH , RGB530BEW3AD , RGB530BEW3WH , RGB532BEA1AD , RGB532BEA1CT , RGB532BEA1WH , RGB532BEA2AD , RGB532BEA2CT , RGB532BEA2WH , RGB532BEA3CT , RGB532BEA4AD , RGB532BEA4CT , RGB532BEA4WH , RGB532BEA5AD, RGB845BEC2WH , RGB845BEC3WH , RGB845WEC1WW , RGB845WEC2WW , RGB845WEC3WW , RGB845WEC4WW , RGB845WEC5WW, plus hundreds more not listed.

Verify if this part is compatible with your model appliance by sending an email to goodapplianceparts@gmail.com. The image shows the actual part. Returns or refunds will not be possible without verification.

The Spark Module is a used OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time. Be sure and gently clean your electrode tips with fine sandpaper, sometimes that is all it takes.

Symptoms of a bad spark module include:

Burners that will not snap to ignite or only intermittently snap to ignite
Flashback or burning above the burner head
The smell of gas when turning burners on, from not igniting.

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

This part fixes the following symptoms
Burners won't snap to ignite.

Stock number:  S2199 .

Part has a 90-day warranty.

The parts are in good condition, but may have some surface flaws consistent with previous use.
